UT120C

€22.00 EUR 22.00
Cod. Prodotto: UT120C


Quantita':

Acquista

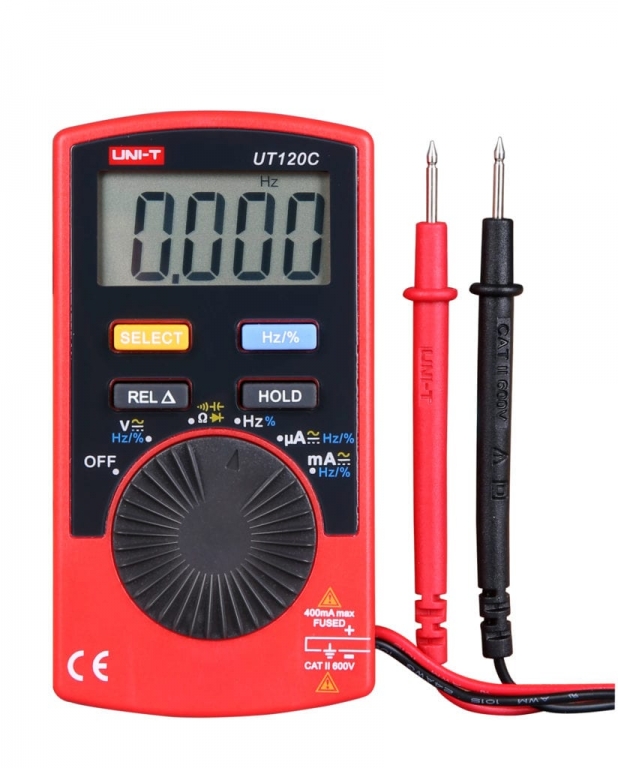

UT120C Pocket Size Digital Multimeter

UT120 series multimeters are designed for DIYers and electronics engineers to troubleshoot electronics systems development and electronics circuits. It is a simple and portable multimeter for every electronics engineer. It conforms to CAT II 600V.

Features:

  • Auto power off
  • Auto range
  • 4000 display count
  • Data hold and relative mode
  • Capacitance measurement
  • AC/DC current measurement



Complies with: CE, RoHS


Technical Data & Features
Specifications Range UT120C
DC voltage (V) 600V ±(0.8%+1)
AC voltage (V) 600V ±(1.2%+3)
DC current (A) 400mA ±(1%+3)
AC current (A) 400mA ±(1.5%+5)
Resistance (Ω) 40MΩ ±(1%+2)
Capacitance (F) 100μF ±(4%+3)
Frequency (Hz) 100kHz ±(0.5%+3)
Features
Display count   4000
Auto range
Duty cycle 0.1%~99.9%
Diode
Auto power off Around 30 minutes
Continuity buzzer
Low battery indication ≤2.4V
Data hold
Relative mode
Input impedance for DCV Around 10MΩ
General Characteristics
Power 3V battery (CR2032)
Display 43mm x 22mm
Product color Red and grey
Product net weight 76g
Product size 110mm x 58.2mm x 10.8mm
Standard accessories Battery, carrying case
Standard individual packing Blister, English manual
