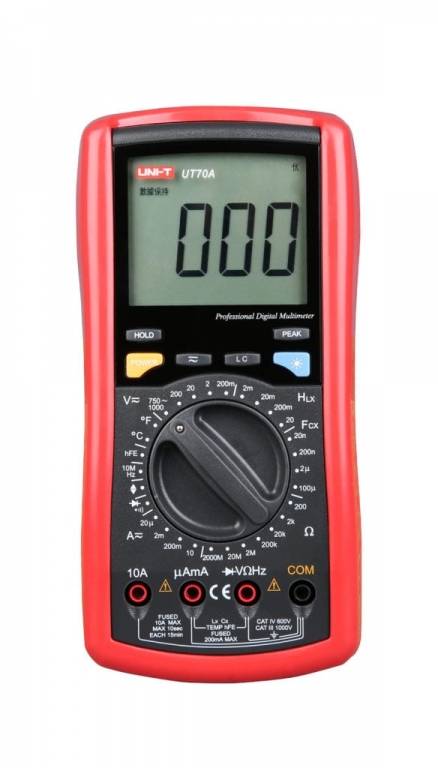

UT70A

UT70A Digital Multimeter UT70A Multimeter is a hand-held digital instrument featuring versatile functions, reliable performance, large LCD, and a novel structure. It can measure AC&DC voltage, AC&DC current, resistance, capacitance, inductance, temperature, frequency, diode, transistor hFE, continuity, and Logic Level. The Meter also offers data hold, MAX, backlight, auto polarity display, over-range indication, low battery indication, full-range overload protection, and auto power off.   Complies with: CE, RoHS Technical Data & Features Specifications Range UT70A DC voltage (V) 600V ±(0.5%＋1) AC voltage (V) 600V ±(0.8%+3) DC current (A) 10A ±(0.8%+1) AC current (A) 10A ±(1%+3) Resistance (Ω) 2000MΩ ±(0.8%+1) Capacitance (F) 100nF ±(2.5%+5) Temperature measurement 1000℃/1832°F ±(1%+3) Inductance (H) 20H ±(2%+10) Frequency (Hz) 10MHz ±(0.1%+3) Features Display count   2000 Transistor (hFE) test   √ Auto power off/Auto backlight off   √ Diode test/Continuity buzzer   √ Peak Hold   2m General Characteristics Power 9V battery Product color Red and grey Standard accessories Test lead, thermocouple, manual Standard individual packing Gift box, English manual
