UT601

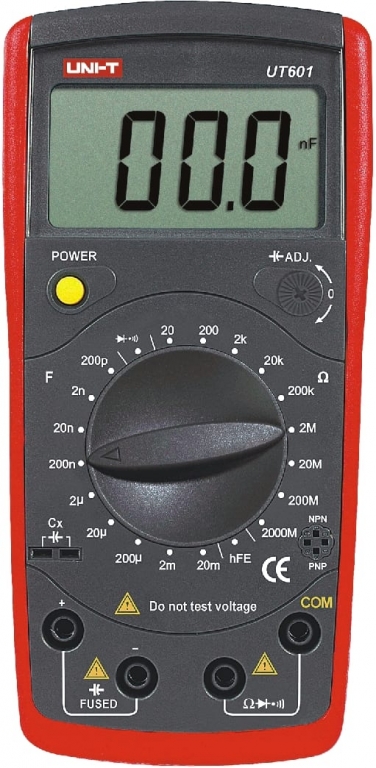

UT601 Inductance Capacitance Meter UT600 series digital inductance capacitance meters are used to test resistors, capacitors and inductors. They can also be used to measure transistor parameters.    Applications: It can be used to check electronic components in electronic labs, production lines, maintenance facilities and schools.   Complies with: CE, RoHS     Technical Data & Features Specifications Range UT601 Resistance (Ω) 20Ω/200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ/200MΩ/2000MΩ ±(0.8%+1) Capacitance (F) 200pF/2nF/20nF/200nF/2uF/20uF/200uF/2mF/20mF ±(0.5%+10) Features Display count   2000 Manual range   √ Diode   √ Transistor   √ Continuity buzzer   √ Low battery indication   √ General Characterisitics Power 9V battery (6F22)    Display 61mm x 32 mm   Product color Red and grey  Product net weight 310g Product size 172mm x 83mm x 38mm   Standard accessories Battery, test leads with alligator clips, holster Standard individual packing Gift box, English manual
