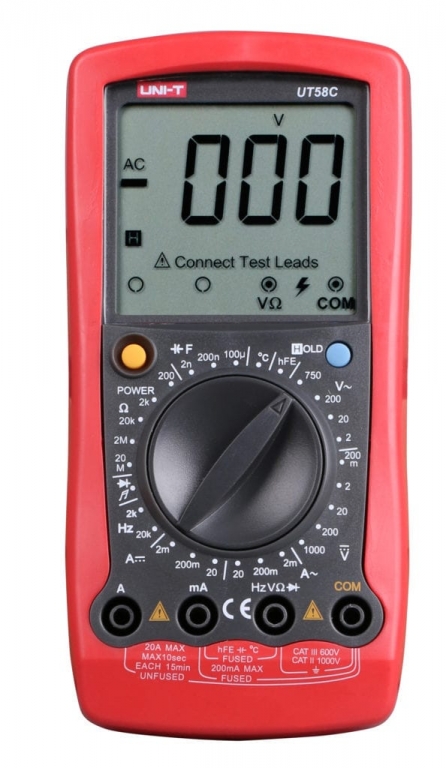

UT58C

UT58C Digital Multimeter UT58 series is a safe and reliable manual range digital multimeter that is easy to operate. Its large 60mm x 54mm LCD screen conveniently displays measurement results. This series digital multimeter satisfies a variety of applications in both electronics and electrical fields. It conforms to CAT III 600V and CAT II 1000V. Features:  2000 display count, refresh rate 2~3 times/s Function symbols and test lead connection indication Transistor measurement Temperature measurement mode, with K-type temperature probe Frequency measurement Diode and continuity buzzer; auto power off; overload protection Data hold; 20A AC/DC current measurement   Complies with: CE, RoHS, ETL     Specifications Range UT58C DC voltage (V) 200mV/2V/20V/200V/1000V ±(0.5%+1) AC voltage (V) 2V/20V/200V/750V ±(0.8%+3) DC current (A) 2mA/200mA/20A ±(0.8%+1) AC current (A) 2mA/200mA/20A ±(1%+3) Resistance (Ω) 200Ω/2kΩ/20kΩ/2MΩ/20MΩ ±(0.8%+1) Capacitance (F) 2nF/200nF/100μF ±(4%+3) Frequency (Hz) 2kHz/20kHz ±(1.5%+5) Temperature (°C) -40°C~1000°C ±(1%+3) General Characteristics Power 9V battery (6F22) Display 60mm x 54mm Product color Red and grey Product net weight 350g Product size 179mm x 88mm x 39mm Standard accessories Battery, test leads, holster, multi-purpose socket, point contact temperature probe Standard individual packing Gift box, English manual
