UT204R

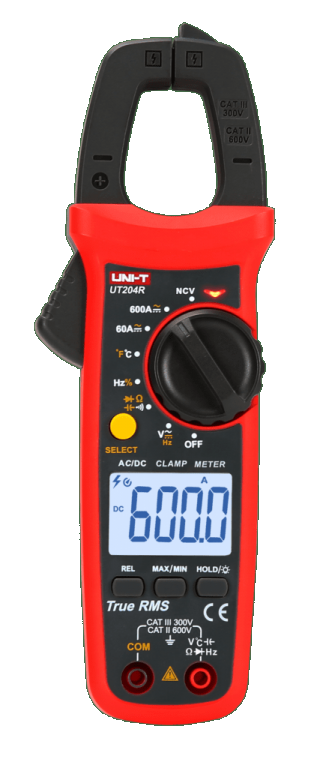

UT204R Digital True RMS Clamp Meter Features: High voltage (600V) frequency-measurement  NCV multi-segment display and audio/visual alarm 600V protection across all ranges In current and voltage range-measurement accuracy is guaranteed 1%~100% across all ranges Conforms to CAT III 300V and CAT II 600V True RMS Small current measurement 60mF large capacitance measurement  Larger screen and display digits LCD backlight Continuity test   Complies with: CE, RoHS, ETL     Technical Data & Features Specifications Range UT203R AC current (A) 0.04~400A ±(2%+5) DC current (A) 0.04~400A ±(2%+5) AC voltage (V) 600V ±(0.8%+5) AC voltage frequency (Hz) 10Hz~60kHz ±(0.5%+2) DC voltage (V) 600V ±(0.5%+2) Resistance (Ω) 40MΩ ±(0.8%+2) Capacitance (F) 40mF ±(4%+5) Frequency (Hz) 10Hz~10MHz ±(0.1%+4) Features Display count   4000 Auto range   √ Jaw opening   28mm True RMS   √ NCV   √ Continuity test   √ Diode   √ MAX/MIN   √ Relative mode   √ Zero mode   √ Data hold   √ Low battery indication   √ Auto power off   √ General Characteristics Power 1.5V battery (R03) x 2 Display 37mm x 25mm Product color Red and grey Product net weight 235g Product size 215mm x 63mm x 36mm Standard accessories Batteries, test leads Standard individual packing Gift box, carrying bag, English manual
