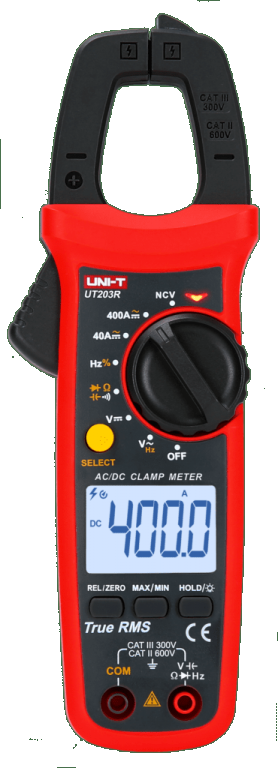

UT203R

UT203R Digital True RMS Clamp Meter Features: High voltage (600V) frequency-measurement  NCV multi-segment display and audio/visual alarm 600V protection across all ranges In current and voltage range-measurement accuracy is guaranteed 1%~100% across all ranges Conforms to CAT III 300V and CAT II 600V True RMS Small current measurement Larger screen and display digits LCD backlight Continuity test   Complies with: CE, RoHS, ETL     Technical Data & Features Specifications Range UT203R AC current (A) 0.04~400A ±(2%+5) DC current (A) 0.04~400A ±(2%+5) AC voltage (V) 600V ±(0.8%+5) AC voltage frequency (Hz) 10Hz~60kHz ±(0.5%+2) DC voltage (V) 600V ±(0.5%+2) Resistance (Ω) 40MΩ ±(0.8%+2) Capacitance (F) 40mF ±(4%+5) Frequency (Hz) 10Hz~10MHz ±(0.1%+4) Features Display count   4000 Auto range   √ Jaw opening   28mm True RMS   √ NCV   √ Continuity test   √ Diode   √ MAX/MIN   √ Relative mode   √ Zero mode   √ Data hold   √ Low battery indication   √ Auto power off   √ General Characteristics Power 1.5V battery (R03) x 2 Display 37mm x 25mm Product color Red and grey Product net weight 235g Product size 215mm x 63mm x 36mm Standard accessories Batteries, test leads Standard individual packing Gift box, carrying bag, English manual
