UT18D

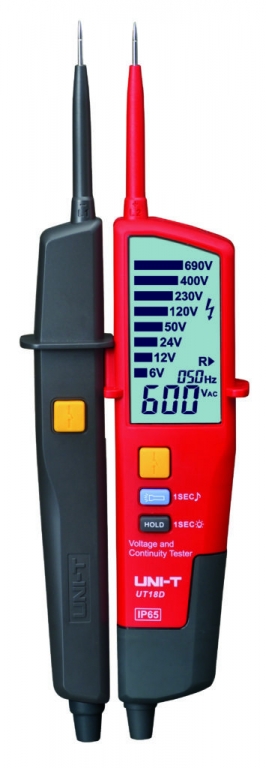

UT18D Voltage and Continuity Tester UT18 series are designed for testing AC/DC voltage, 3-phase voltage, phase sequence, continuity, and more. This series is categorized as CAT IV 600V and meets IP65 standard. These voltage testers are perfect tools for electricians to quickly measure voltage levels in all environments. This series should NOT be used with 110V electrical systems.   Features: Auto power off, the conductor to be measured is greater than 12V Phase rotation test Continuity test with buzzer and LED indication Low battery indication and over voltage prompt Flashlight Test live voltage without batteries Buzzer and silent modes available Auto rangePolarity indication   Complies with: CE, RoHS, ETL   Technical Data & Features Specifications Range UT18D Voltage (V) 6V 5V±1V 12V 8V±1V 24V 18V±2V 50V 38V±4V 120V 94V±8V 230V 180V±14V 400V 325V±15V 690V 562V±24V Phase rotation test 57Vac～400Vac (3 phase) √ Frequency: 50Hz~400Hz Single lead (L2) Operating voltage: 100V~690V √ voltage detection Frequency: 50Hz~400Hz Continuity test Resistance: 0Ω~100kΩ (+50% accuracy) √ Beeper and LED light indication RCD test Operating voltage: 230V (50Hz~400Hz) √ Polarity detection Positive & Negative √ Self-inspection All LED or LCD √ Features Voltage indication   LCD Exceed voltage Voltage range: 713V~788V √ Auto standby Standby current＜10μA √ Slient mode All range √ Work light   √ Low battery indication Around 2.5V √ LCD backlight   √ LCD display (voltage) 6V~690V ±(1.5%+5) LCD display (Frequency) 40Hz~400Hz ±(3%+5) IP65   √ General Characteristics Power 1.5V battery (R03)×2 Display 73.5mm x 35.5mm Product color Red and grey Product net weight 280g Product size (W x H x D) 272mm x 85mm x 31mm Standard accessories Batteries Standard individual packing Blister, English manual
