UT131A

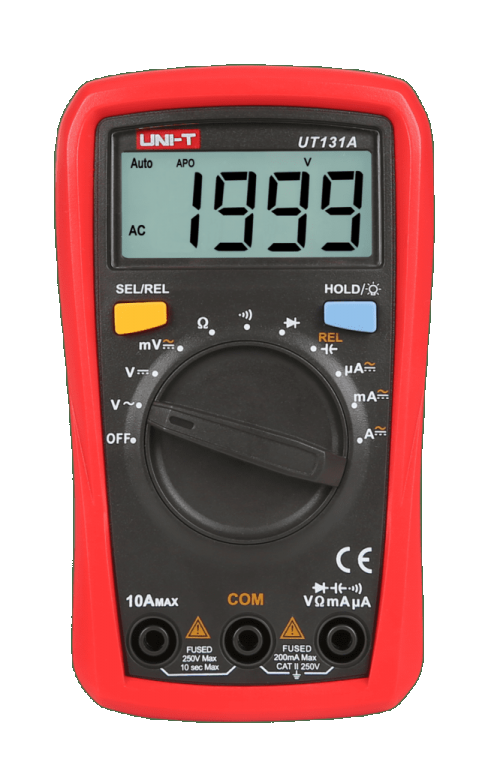

UT131A Palm Size Digital Multimeter The new generation UT131 series redefines the performance standards for entry-level digital multimeters. The innovative industrial design ensures that these products can withstand a 2 meters drop. The new LCD display layout provides a better user experience. This series ensures that users can work safely in CAT II 250V environment. Special features are: 2mF capacitance test (UT131A) and temperature measurement function (UT131C). Features: Clear LCD display Comfortable protective cover , with test lead hanging groove Withstands 2 meter drop test, precision protection Loud buzzer sound Ergonomic design   Complies with: CE, RoHS     Technical Data & Features Specifications Range UT131A DC voltage (V) 200mV~250V ±(0.5%＋3) AC voltage (V) 200mV~250V ±(0.7%+3) DC current (A) 200μA~10A ±(1%+3) AC current (A) 200μA~10A ±(1.2%+3) Resistance (Ω) 200Ω～200MΩ ±(0.8%+2) Capacitance (F) 2nF~2mF ±(3%+5) Features Display count   2000 Auto power off/Auto backlight off   √ Diode test/Continuity buzzer   √ Drop test   2m Test probe holder   √ Range selection   Auto General Characteristics Power 1.5V battery (R03) x 2 Display 66mm x 51mm Product net weight 300g Product color Red and grey Product size (W x H x D) 131mm x 95mm x 58mm Standard accessories Test lead, manual Standard individual packing Gift box, English manual
