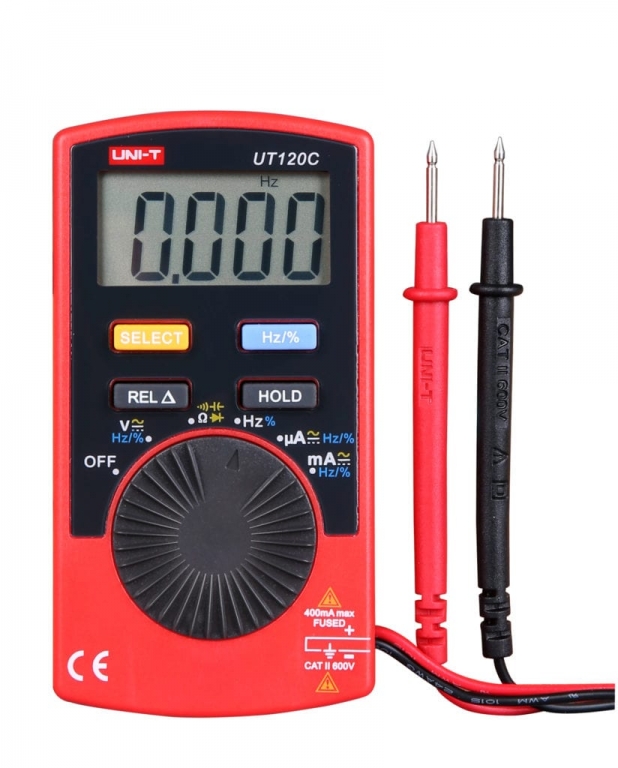

UT120C

UT120C Pocket Size Digital Multimeter UT120 series multimeters are designed for DIYers and electronics engineers to troubleshoot electronics systems development and electronics circuits. It is a simple and portable multimeter for every electronics engineer. It conforms to CAT II 600V. Features: Auto power off  Auto range 4000 display count Data hold and relative mode Capacitance measurement AC/DC current measurement   Complies with: CE, RoHS   Technical Data & Features Specifications Range UT120C DC voltage (V) 600V ±(0.8%+1) AC voltage (V) 600V ±(1.2%+3) DC current (A) 400mA ±(1%+3) AC current (A) 400mA ±(1.5%+5) Resistance (Ω) 40MΩ ±(1%+2) Capacitance (F) 100μF ±(4%+3) Frequency (Hz) 100kHz ±(0.5%+3) Features Display count   4000 Auto range   √ Duty cycle 0.1%~99.9% √ Diode   √ Auto power off Around 30 minutes √ Continuity buzzer   √ Low battery indication ≤2.4V √ Data hold   √ Relative mode   √ Input impedance for DCV Around 10MΩ √ General Characteristics Power 3V battery (CR2032) Display 43mm x 22mm Product color Red and grey Product net weight 76g Product size 110mm x 58.2mm x 10.8mm Standard accessories Battery, carrying case Standard individual packing Blister, English manual
