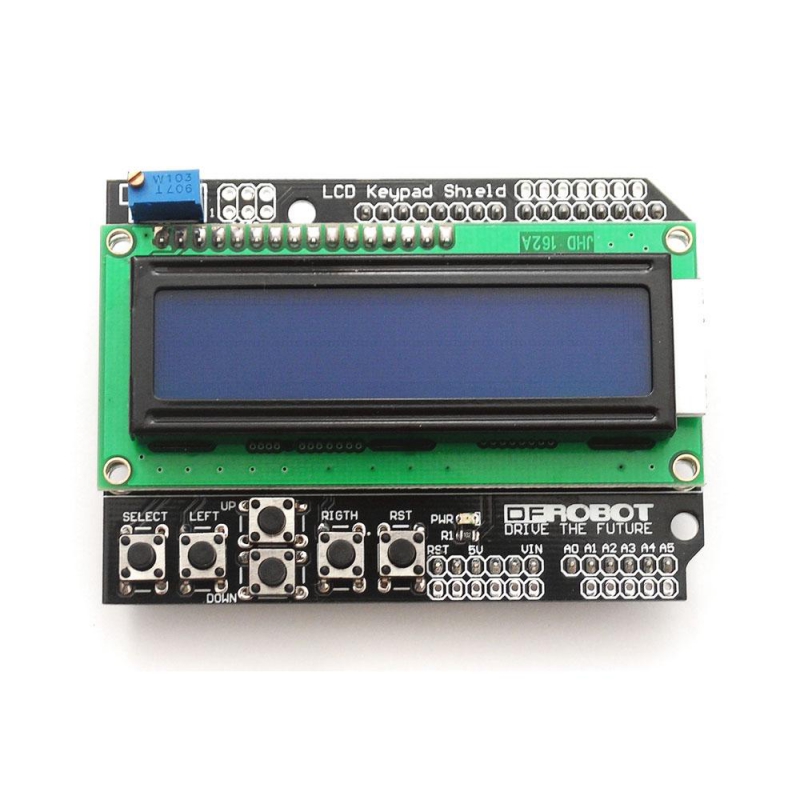

Shield per Arduino Shield LCD 16x2 con Keypad This LCD Keypad Shield (male pin connector) for Arduino comprises a 16x2 blue LCD display and 6 momentary pushbuttons, from left to right, SELECT, LEFT, UP, DOWN, RIGHT and RESET. The shield can be directly plugged onto an Arduino Duemilanove board, making soldering or fly-wiring for connection unnecessary. Pins 5, 6, 7, 8 and 9 are used as the interface to the LCD. The shield operates at 5V. Main features include: -A 16x2 blue LCD -Adjustable contrast -Laminated design and easy to expand -Using modified LCD4Bit Interface
