SENSORE28

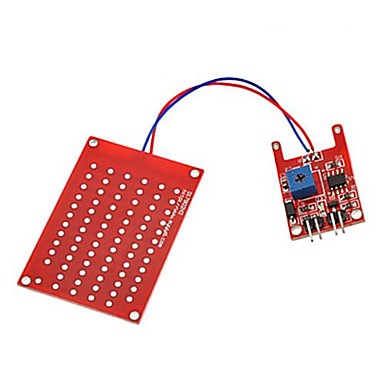

Raindrops Sensor Module Arduino robot kits, rain, rain sensor can be used for all kinds of weather monitoring, and go down to set the output signal and the AO. When connect with 5V power supply, the light on. When there is no water droplets on induction plate, the DO output for the high level, switch lights off, drop water-drop, DO output is low level, indicator light on. Brush away the water droplets, return to again, the output high level state. AO analog output, can be connected to the microcontroller AD mouth drops of rainfall in the above size. DO TTL digital output can also be connected microcontroller detecting whether it will rain. Voltage:  5V Large raindrop detection plate: 5.4 x 4.0 mm Dashboard board size: 3 x 1.6 mm
