SENSORE21

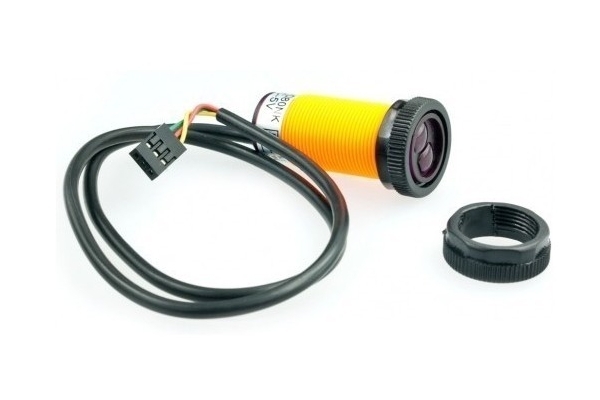

Sensore per Arduino   Arduino Infrared Obstacle Avoidance Detection Photoelectric Sensor   Model: E18-D50NK Color: Black + Orange Material: ABS Features: Transmitter and receiver photoelectric sensor set; Voltage: DC 5V, current: 100mA, detection range: 3~80cm (adjustable); with potentiometer and output indicator light on the back Other Useful for robot, interactive media, industrial assembly line, etc...   Arduino infrared switch is an integrated transmitter and receiver as one of the reflective photoelectric sensor, the sensor has a detection distance, through the back of the potentiometer to adjust the measuring range, without the addition of the modulated signal, by the visible light interference is small, cheap and easy to assemble. Easy to use features, widely used in robot obstacle avoidance, process lines and other occasions.   The measuring range of the infrared switch given by the manufacturers range from 3cm-80cm, but this product is not a precision sensor, measuring range with a certain error.   Technical parameters: 1) Voltage: 5VDC 2) Current: 100mA 3) Measuring range: 3-80CM 4) NPN normally open type 5) The back adjustment potentiometer and the output indicator 6) Pin definitions: red power, green power is negative, the yellow signal output. 7) Have been processed DuPont plug directly into an Arduino sensor expansion board use. 8) Probe Diameter: 18mm 9) Probe Length: 43mm 10) Lead Length: 30cm   Applications: 1) Production line goods automatic counting device 2) Multi-functional reminder
