PWM0055

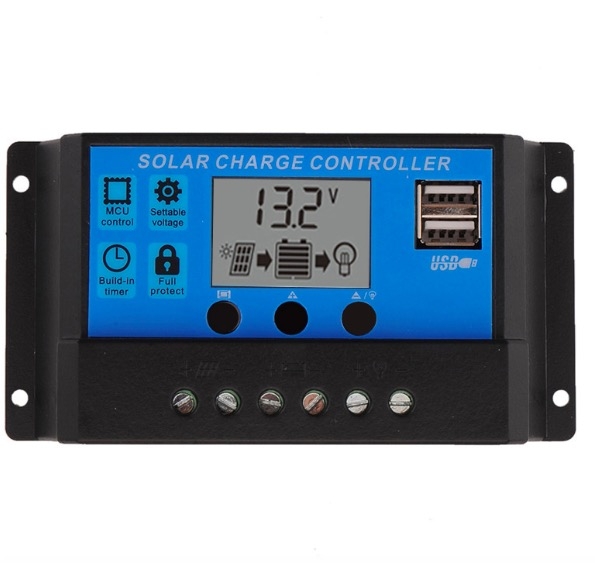

PWM 10A Dual USB Solar Panel Battery Regulator Charge Controller 12V 24V - Regolatore di Carica   Description:   •  100% brand new and high quality. •  Specifications: •  Rated Voltage: 12V 24V Auto •  Application: Solar System Controller •  Current: 10A/20A/30A
　 •  With Timer and light sensor,it could work for solar light system. •  Only For off-Grid PV Solar System. •  For 10A 12V Pv System: 120W Solar Panel,12V Lead-acid Battery,21V for Max input Voltage •  For 10A 24V Pv System: 240W Solar Panel,24V Lead-acid Battery,42V for Max input Voltage
　 •  Safety Instructions: •  1.Make sure your battery has enough voltage for the controller to recognize the battery type before first installation. •  2.The battery cable should be as short as possible to minimize loss. •  3.The regulator is only suitable for lead acid batteries: OPEN,AGM, GEL
it is not suited for nickel metal hydride, lithium ions or other batteries. •  4.The charge regulator is only suitable for regulating solar modules. Never connect another charging source to the charge regulator.
　 •  Features: •  1.Build-in industrial micro controller. •  2.One-key setting,digital display,auto memory function. •  3.Fully 4-stage PWM charge management. •  4.Build-in short-circuit protections,open-circuit protections,reverse protections,over-load protections •  5.Dual mosfet Reverse current protections ,low heat productions.
　 •  System Connection: •  1.Connect the battery to the charge regulator - plus and minus.it will show 1 ,if it detects 12V battery, 2 if it detects 24V battery. •  2.Connect the photovoltaic module to the regulator - plus and minus. •  3. Connect the consumer to the charge regulator - plus and minus.
　 •  The reverse order applies when deinstalling! •  An improper sequence order can damage the controller! •  Size: 133x70x32mm/5.2x2.7x1.3" •  Note: •  Please allow 0-2mm error due to manual measurement. pls make sure you do not mind before you bid •  Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
　 Package includes: •  1x Solar panels Battery Charge Controller •  1 x User Manual
