MODULO15

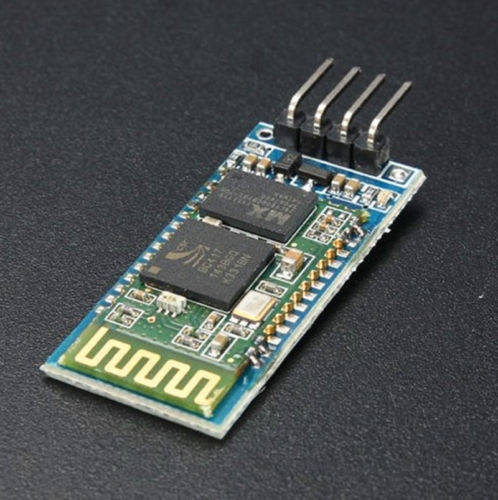

Modulo per Arduino HC-06 Wireless Bluetooth Module Power supply voltage: 3.3 VDC 50 ma Working temperature: (-20 to 55) Supporting configuration: Bluetooth serial port. Method of modulation: Gaussian frequency shift keying(GFSK) Sensitivity: (- 84 dBm or less) Size: 40 x 15.5mm Description: 1. A core module, which leads to the interface includes VCC, GND, TXD, RXD, reserved LED state output pin, MCU can state whether the bluetooth is connected through the foot. 2. The led indicates a bluetooth connection status, twinkle said there was no bluetooth connectivity.
