MODULO146

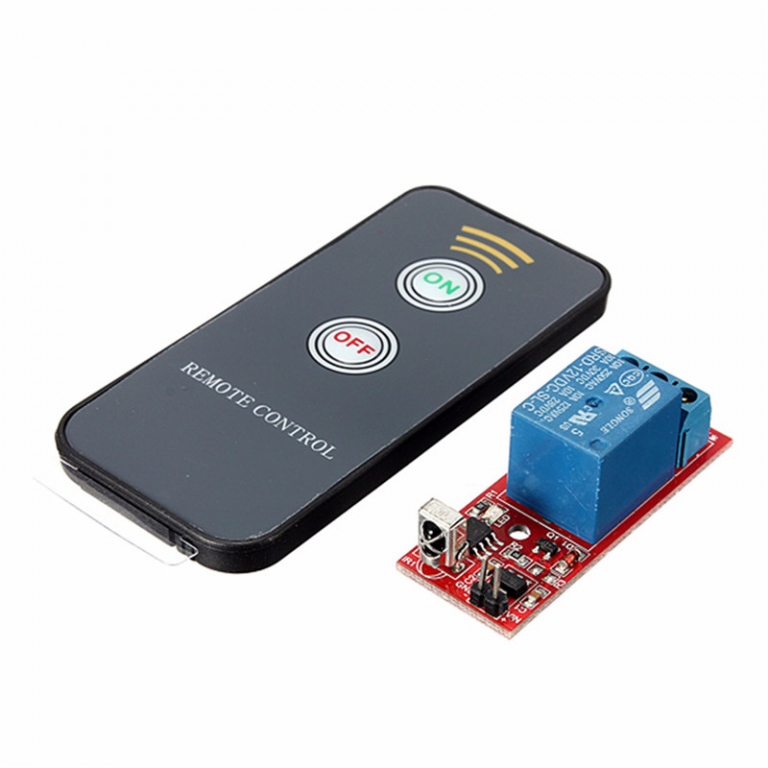

Modulo per Arduino 8m IR Wireless Control Receiver Board 1 Channel Relay Driving Module Remote Control 12V Features: Operating Voltage: DC 12V Remote Distance: 8m LED indicator With 3mm fixed screw holes, it's easy to install. Module Interface: VIN+ power supply anode 9-13V, GND- power supply cathode The middle of three ports is public, it can be normally open and normally closed output with the others. The circuit is insulated before the relay's output and input. Remote Controller make use of UPD6122 chip and NED coding format, frequency is 38K. Remote Controller User Code: OxOOFF Key Value: "ON"---40, "OFF"---19 Battery: CR2025(Batteries are not included.) Specification: Weight: 33g Relay Size: 5(L)x2(W)x1.8(H)cm Remote Controller Size: 4(L)x0.7(W)x8.5(H)cm Package Included: 1xRelay Driving Module 1xRemote Controller
