MODULO112

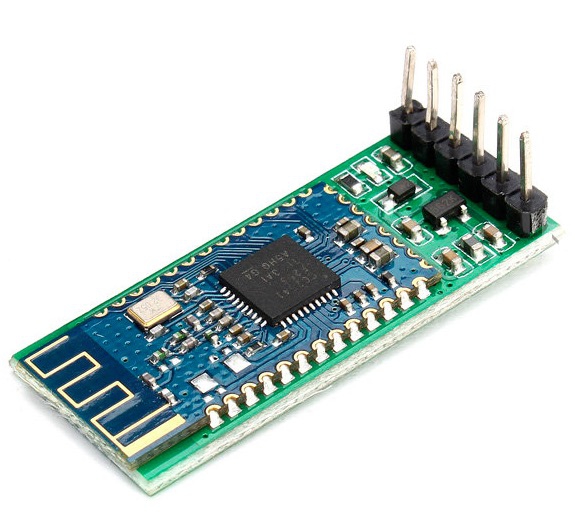

BLE CC2541 Bluetooth 4.0 UART Transceiver Serial Module With Baseboard Pin Description: Low-power dissipation BLE CC2541 CC41 Bluetooth 4.0 UART Transceiver Serial Module, used by the U.S. TI's CC2541 chip configuration 256Kb space, follow the Bluetooth specification V4.0 BLE.  Supports AT commands, the user can modify the serial port baud rate, device name, password and other parameters according to the pair. The module supports UART interface, and supports Bluetooth SPP serial protocol. Connected with Iphone 4S and Android 4.3 above. Feature:   Bluetooth protocol: Bluetooth Specification V4.0 BLE, receive no byte limit, Iphone 4s under open environment and can achieve 110 m long distance communication Operating frequency: 2.4GHz ISM band  Modulation: GFSK (Gaussian Frequency Shift Keying)  Sensitivity: ≤-84dBm at 0.1% BER  Transfer Rate: Asynchronous: 6 kbps Synchronous: 6 kbps  Safety features: Authentication and encryption  Support Services: Central & Peripheral UUID FFE0, FFE1  Power consumption: automatic sleep mode, standby current 400uA ~ 1.5mA, transmission 8.5mA.  Power supply: +3.3V DC 50mA  Dimensions: 26.9mm x 13mm x 2.2 mm  Bluetooth Certification: ROHS REACH Application:   This module is mainly used for short-distance wireless transmission of data in the field. And PC can be easily connected Bluetooth devices, also can communicate between two data. Avoid cumbersome cable connections, direct serial cable replacement   Bluetooth Car Handsfree  Bluetooth GPS  Bluetooth wireless data transmission Remote control and monitoring POS systems, wireless keyboard and mouse transportation, underground locating and alarm automated data acquisition system Wireless data transmission; banking system Wireless data collection Smart home, industrial control Automotive testing equipment Interactive television programming voting equipment Government street lights energy-saving equipment  Wireless LED display system  Bluetooth printer  Bluetooth remote control toys  Anti-lost alarm, LED lighting control  Building automation, security, wireless monitoring and control room equipment,access control systems Bluetooth joystick, gamepad bluetooth joystick, gamepad bluetooth joystick, gamepad Notice:   1. Avoid use of metal productssurrounding the Bluetooth module to , when the portion of the metal shell, should be let antenna away from the metal part of the section 2. The product of internal metal cables or metal screws, should be kept away from the antenna 3. The bottom of the module try to spread large GND, traces extend to the periphery 4. Use insulating material insulate mount position of the module Package inlcluded: 1 x Bluetooth 4.0 Module With Baseboard Pin
